By Rodin
***PLEASE NOTE THAT THIS ITEM IS NON-RETURNABLE DUE TO THE RISK OF CONTAMINATION
TruModel is a high-performance, FDA-listed 3D printing model resin engineered for precision, durability, and efficiency across restorative and orthodontic workflows. Built on the proven Titan chemistry platform and developed from the same biocompatible resin technology, TruModel delivers exceptional dimensional accuracy, surface hardness, and long-term stability with safe handling and a clean, VOC and odor-free formulation.

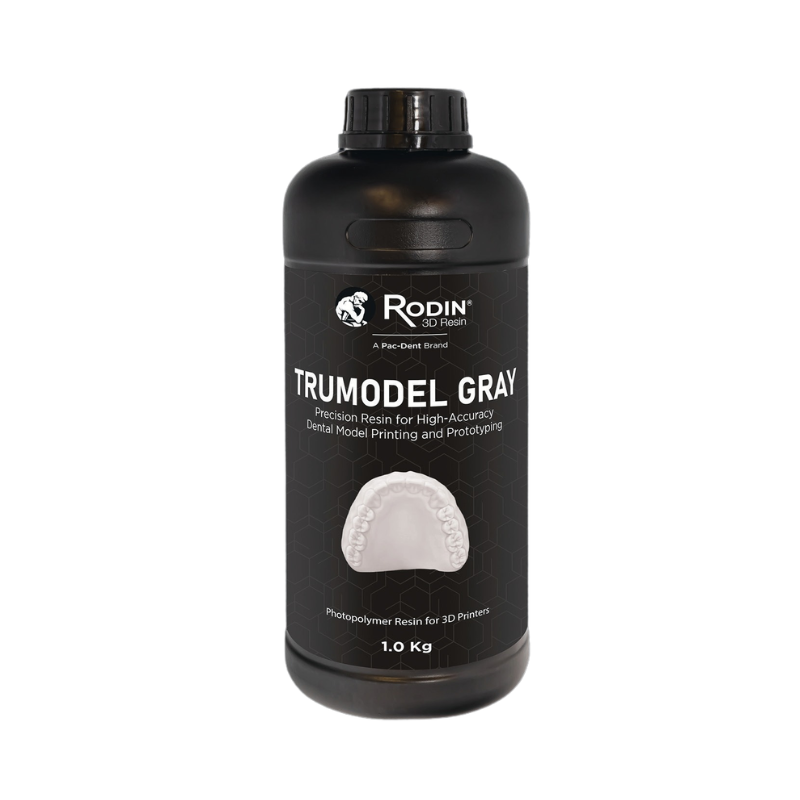

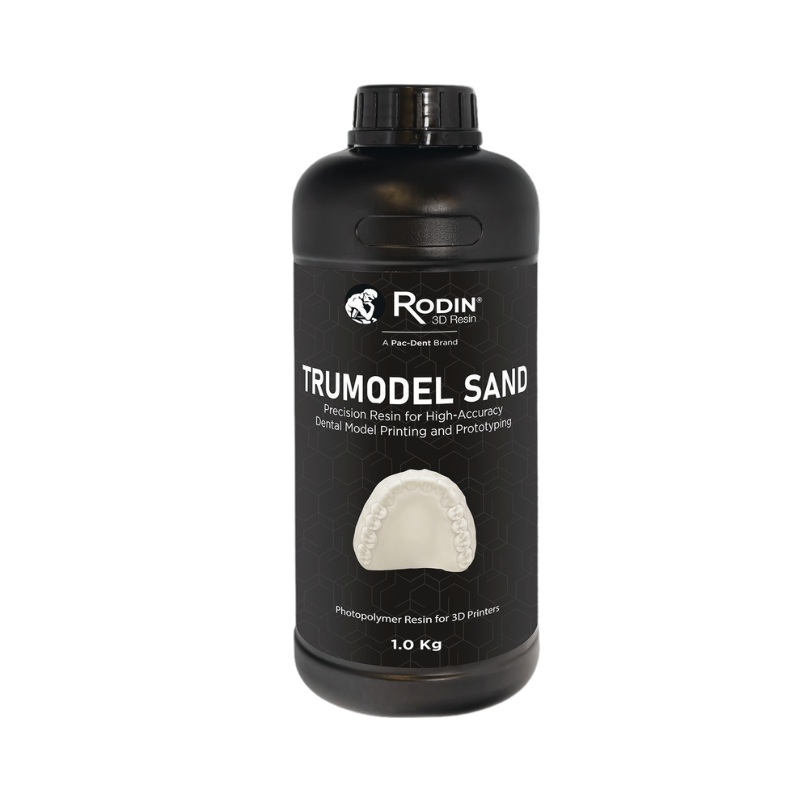

Available in three optimized shades—Tan, Sand, and Gray—Rodin TruModel supports a wide range of clinical and laboratory workflows by improving contrast, visibility, and overall accuracy. Each shade features a matte, scanner-friendly surface that eliminates the need for scanning spray and readily accepts pencil markings or occlusal tape. Validated for high-speed printing on leading DLP and LCD systems (385–405 nm), TruModel delivers dependable precision with the safety and regulatory confidence of a trusted platform.
Features:
- Regulatory-Grade Assurance: FDA-listed formulation with VOC-free chemistry ensures verified safety, quality, and compliance for professional use.
- High Dimensional Accuracy: Maintains true-to-design fits within ± 50 µm on select printer systems.
- Matte, Scanner-Friendly Surface: Enhances margin visibility and scanning precision—no spray required.
- Long-Term Stability: Resists warping, chalking, and yellowing for dependable accuracy over time.
- Validated Efficiency: High-speed, low-waste printing optimized for DLP/LCD platforms.
|
RODIN TruModel (all shades) |
||
|
Technical Data Sheet |
||
|
Property |
Result | Testing Protocols |
|
Viscosity |
600 - 900 cP |
25 °C |
|
Flexural Strength |
> 110 Mpa |
ASTM D790-10 |
|
Flexural Modulus |
4000 - 5000 MPa |
ASTM D790-10 |
|
Tensile Strength |
75 - 85 MPa |
ASTM D638-10 |
|
Tensile Modulus |
500 - 800 MPa |
ASTM D638-10 |
|
Hardness |
≥ 98 Shore D |
ASTM D2240 |
|
Water Solubility |
< 1 µg/mm3 |
ISO 4049: 2019 |
|
Water Sorption |
< 15 µg/mm3 |
ISO 4049: 2019 |
|
Layer Thickness |
50 µm |
N/A |
|
Wavelength |
385/405 nanometer |
N/A |
|
Biocompatibility |
Non-Cytotoxic- Comply |
ISO 10993-1 |
|
Biocompatibility |
Non-Mutagenic - Comply |
ISO 10993-1 |
|
Biocompatibility |
Sensitivity - Comply |
ISO 10993-1 |
