Key Features Description
The Flight Autoclave Clave28+ with Compressor is a Class S, fully automatic steam autoclave designed for efficient and reliable sterilization in dental and medical practices. Its 28 L chamber, independent steam generator, and precision temperature and pressure monitoring provide consistent cycle control. The LCD display offers clear operating information, while automatic water-level monitoring, door locking, alarms, and error-code indication help support safe and straightforward operation. A built-in printer and data logger provide convenient documentation and cycle recordkeeping.
Features
-
Class S Sterilization: Fully automatic Class S steam sterilization for routine instrument processing.
-

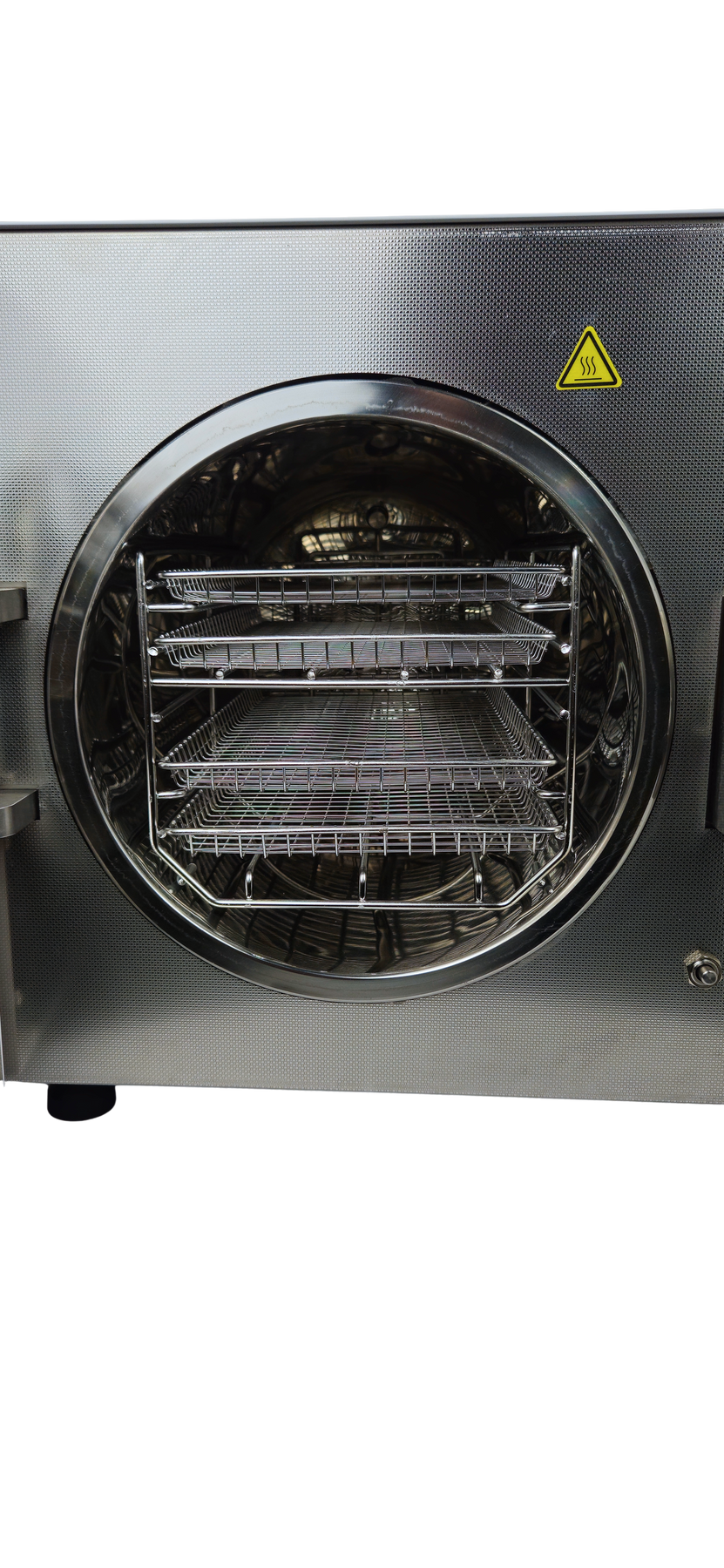

28 L Chamber Capacity: Φ11.0" × 19.0" chamber accommodates up to 5 trays.
-
4 Standard Trays: Supplied with 4 trays for convenient instrument loading.
-
Independent Steam Generator: Provides efficient and controlled steam generation.
-
Independent Temperature & Pressure Monitoring: Enables precise monitoring of critical sterilization parameters.
-
High-Precision Control System: Designed for accurate and consistent cycle management.
-

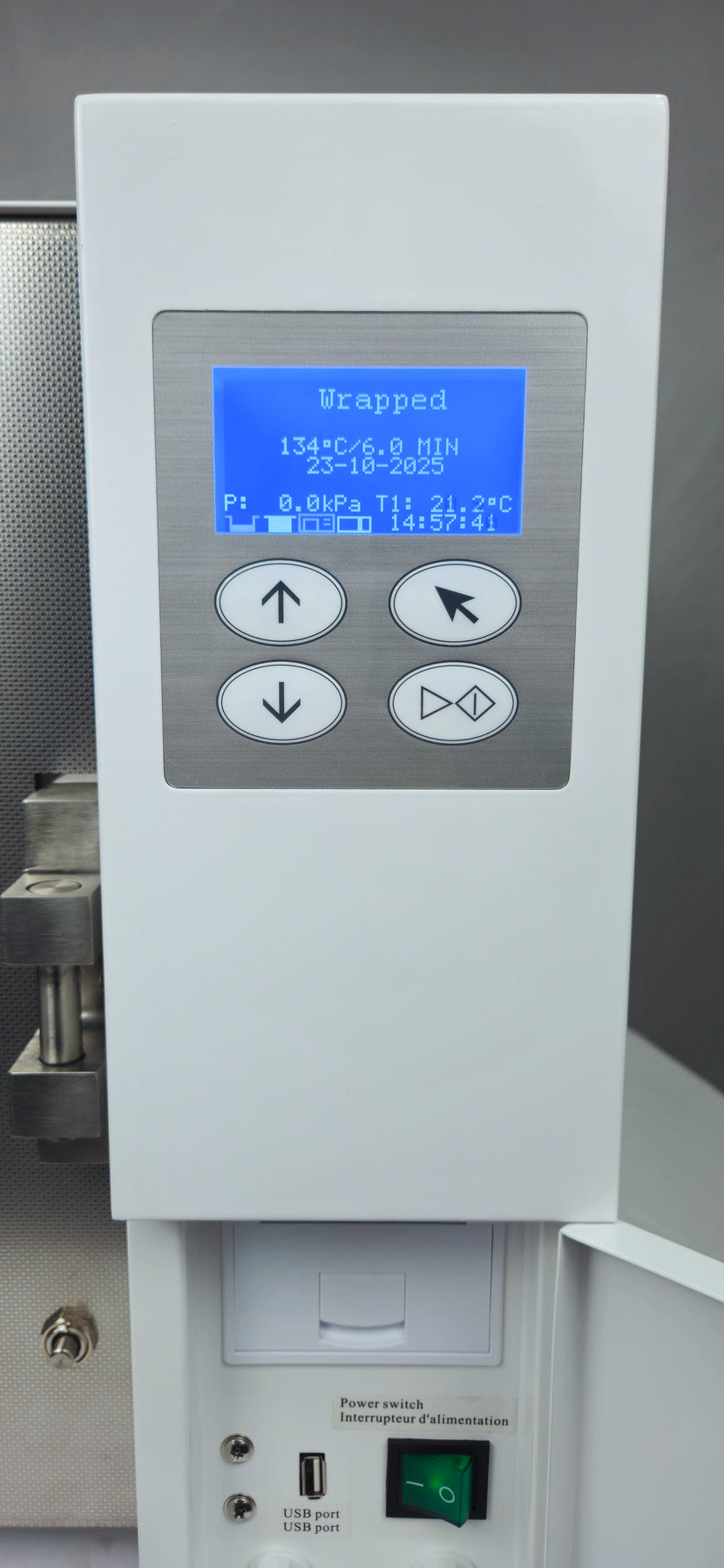

LCD Display: Provides clear visibility of cycle status, temperature, pressure, and operating information.
-
Automatic Water-Level Alarm: Alerts users when water levels require attention.
-
Automatic Door Locking: Helps prevent the door from being opened during unsafe operating conditions.
-
Error Code Indication: Displays error information to assist with troubleshooting and operation.
-
Built-In Printer: Prints cycle information for convenient sterilization records.
-
Data Logger: Supports electronic cycle documentation and recordkeeping.
-
Automatic Operation: Simplifies sterilization with programmed, automated cycles.
-
110 VAC Power: 1600 W nominal power, compatible with 110 VAC / 60 Hz electrical supply.
-
Compact Design: Overall dimensions of 22.5" W × 18.5" H × 25.25" D.
| Specification |
Details |
| Model |
Flight Clave28+ |
| Type |
Class S Autoclave |
| Operation |
Fully Automatic, Non-Vacuum |
| Chamber Capacity |
28 L |
| Chamber Size |
Φ11.0" × 19.0" |
| Trays |
4 standard, maximum 5 |
| Voltage |
110 VAC |
| Frequency |
60 Hz |
| Nominal Power |
1600 W |
| Display |
LCD |
| Steam Generator |
Independent |
| Temperature Monitoring |
Independent |
| Pressure Monitoring |
Independent |
| Control System |
High-precision |
| Water Level |
Automatic alarm |
| Door Locking |
Automatic |
| Error Indication |
Error code display |
| Printer |
Built-in |
| Data Logger |
Built-in |
| Compressor |
Included |
| Overall Dimensions |
22.5" W × 18.5" H × 25.25" D |
| Sterilization Method |
Steam |
